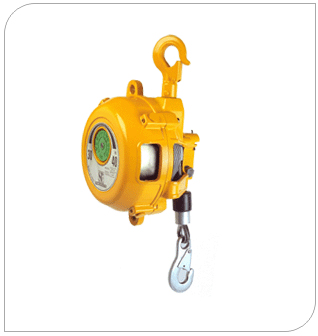

ALUMINIUM DIE CASTING SERIES SP SB 40 - 85

MODEL NO	CAPACITY (kgs)	CABLE TRAVEL (mtrs)	MASS (kgs)
SPSB-40	30.0-40.0	1.7	10.0
SPSB-50	40.0-50.0	1.7	11.0
SPSB-60	50.0-60.0	1.7	12.0
SPSB-70	60.0-70.0	1.7	12.0
SPSB-85	70.0-85.0	1.5	13.0

MODELS	GENERAL TOOLS USED	AREA OF USE IN SHOP FLOOR	MAKE OF TOOLS NORMALLY USED
SPSB - 40 SPSB - 50 SPSB - 60 SPSB - 70	PORTABLE SPOT (WELDERS) HYDRAULIC TOOLS HYDRAULIC RIVETERS NUMBER PUNCHING MACHINES NUT RUNNERS	BODY SHOP (WELD) CHASIS ASSLY	NASH M/C's, JAIHIND SCIAKY, MECHELONIC CHICAGO PNEUMATIC DESOUTTER, DAI, ICHI

MODEL NO.

PARTS OF SPRING BALANCER

RAW MATERIAL SPECIFICATION

DETAILED PROCESS OF MANUFACTURE

SPSB-40
SPSB-50
SPSB-60

SPSB-70

BODY
BODY COVER
PULLEY
BACK COVER
SPRING
CASING

LM-6
GRADE SAND CAST
DIE CAST

EDD QUALITY
STEEL SHEET

Sand Cast of high quality aluminium, duly machined to maintain dimensional accuracy. Drilling, Tapping, Powder Coating for improved finish.
Outer Cutting, Deep Drawing, Piercing, Bending Fabrication.

Mass . Kg : 4.5 to 9 - 4.0 Kg
9.0 to 15.0 - 4.0 Kg
15.0 to 22.0 - 8.0 Kg
