MOTOR & MANUAL DRIVEN HOSE REEL SERIES 8000

S. P. ENGINEERS Series 8000 hose reels are deasigned for heavy duty application requriring long lengths of hose and will adapt to in the field or in the plant uses. Contemporary engineering and manufactring techniques assure trouble free performance and long product life. S.P. Hose Reels are shipped completely assembled,ready to install.Installation instrution are supplied with each hose reel.
S.P. Hose Reels can also be ordered less swivel to be used as storage hose reels for hose,cord,cable,rope,extension cords and numerous other applications.


STANDARD FEATURES INCLUDE :

*   Nickel-plated swivel available with VITON "O"ring seals. Viton are standard.
*   Unitized all bolted construction.Reel,frame,spool and drum are fabricated of      heavy gauge steel.
*   Temperature operating rangea-20* F (-29* C) to 250* F (121* C).
*   Manual driven reels can be converted to electric,hydraulic or air driven with motor mounting or either end of reel.
*   Chain &sprocket partiality shrouded for extra safety.
*   Durable baked on powder coat red finish standard.
*   Full flow shaft and swivel.
*   Permanently lubricated dual main bearings.
*   Steel dram.
*   Lock pin to prevent spool rotation when the reel is not in use.
*   Vibration-proof self-locking fasteners to ensure assembly integrity.

STANDARD FEATURES INCLDE

*  Adjustable spool rotation drag that eliminates hose bvacklash when de-reeling
    Nicked-plated swivel with viton “O” ring seals.
*  Full flow shaft and swivel .
*  Permanently lubricated dual main bearings.
*  Motor mounting at ether end of reel.
*  Durable power coat finish (red).
*  All bolted construction-no welds.
*  Lock pin to prevent spool rotation when the reel in not in use.
*  Temparature operating range from -20 F (29degree C) to +250 F (121degree C).
*  Vibration-proof self-locking fasteners to ensure assembly integrity.
*  Manual driven reels are easily converted to power driven types.
*  Unitized spool construction.
*  Steel drum.

ALL 8000 SERIES REELS ARE SUPPLIED WITHOUT HOSE, ASSEMBLIES WILL BE QUOTED UPON REQUEST. INLET IS NPT (F) OR BSP (F)

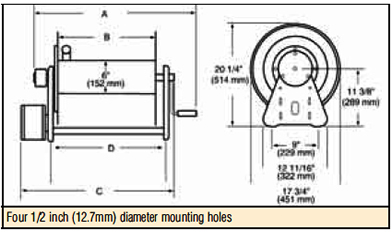

MODEL NO. HOSE I.D. HOSE O.D. CAPACITY PRESSURE A B C D
  in mm mm ft mtr psi bar in mm in mm in mm in mm
HAND CRANK REELS
SP HC 8010 L 1/4" 6 13 200' 61 1000 69 25" 635 12" 305 N/A 153/4" 400
SP HC 8012 L 1/4" 6 13 425' 130 1000 69 31" 788 18" 438 N/A 213/4" 553
SP HC 8110 L 3/8" 10 17 140' 43 1000 69 25" 635 12" 305 N/A 153/4" 400
SP HC 8112 L 3/8" 10 17 300' 91 1000 69 31" 788 18" 458 N/A 213/4" 553
SP HC 8210 H 1/2" 12.7 21.5 100' 31 3000 207 19" 483 6" 153 N/A 93/4" 248
SP HC 8212 H 1/2" 12.7 21.5 200' 61 3000 207 25" 635 12" 305 N/A 153/4" 400
SP HC 8214 L 1/2" 12.7 21.5 325' 99 1000 69 31" 788 18" 458 N/A 213/4" 553
SP HC 8310 L 3/4" 19 30.2 50' 16 1000 69 19" 483 6" 153 N/A 93/4" 249
SP HC 8312 L 3/4" 19 30.2 100' 31 1000 69 25" 635 12" 305 N/A 153/4" 400
SP HC 8314 L 3/4" 19 30.2 175 54 1000 69 31 788 18" 458 N/A 213/4" 553
SP HC 8316 M 3/4" 19 30.2 100' 31 3000 207 25 635 12" 305 N/A 153/4" 400
SP HC 8318 M 3/4" 19 30.2 175' 54 3000 207 31 788 18" 458 N/A 213/4" 553
ELECTRIAL MOTOR DRIVEN REELS
SP EM 8010 L 10 A 1/4" 6 13 230 70 1000 69 N/A 12 305 235/8 600 153/4 400
SP EM 8012 L 12 D 1/4" 6 13 425 130 1000 69 N/A 18 458 295/8 753 213/4 553
SP EM 8110 L 10 A 3/8" 10 17 215 65 1000 69 N/A 12 305 235/8 600 153/4 400
SP EM 8112 L 12 D 3/8" 10 17 300 91 1000 69 N/A 18 458 295/8 753 213/4 553
SP EM 8210 L 10 A 1/2" 12.7 21.5 100 31 1000 69 N/A 6 153 195/8 499 93/4 249
SP EM 8212 L 12 D 1/2" 12.7 21.5 200 61 1000 69 N/A 12 305 235/8 600 153/4 400
SP EM 8214 12 D 1/2" 12.7 21.5 325 99 1000 69 N/A 18 458 295/8 753 213/4 553
SP EM 8310 12 D 3/4" 19 30.2 50 16 1000 69 N/A 6 153 195/8 499 43/4 249
SP EM 8312 L 12 D 3/4" 19 30.2 100 31 3000 207 N/A 12 305 235/8 600 153/4 400
SP EM 8314 M 12 D 3/4" 19 30.2 175 54 3000 207 N/A 28 712 385/8 982 303/4 781
SP EM 8316 L 12 D 3/4" 19 30.2 100 31 1000 69 N/A 12 305 235/8 600 153/4 400
SP EM 8318 M 24 D 3/4" 19 30.2 100 31 3000 207 N/A 12 305 235/8 600 153/4 400
AIR MOTOR DRIVEN REELS
SP AM 8010 L 4A 1/2" 12.7 21.5 200' 61 1000 69 N/A 12" 305 231/4" 591 153/4 400
SP AM 8210 L 4A 3/4" 19 30.2 50 16 1000 69 N/A 6 153 171/4 439 93/4" 249
SP AM 8212  L 6A 3/4" 19 30.2 100 31 1000 69 N/A 12 305 171/4 439 153/4 400
HYDRAULIC MOTOR DRIVEN REELS
SP HM 8010 M 1/2" 12.7 21.5 200' 61 3000 207 N/A 12 305 171/4" 439 153/4" 400



Model Number Significance

Drive Type Swivel Size Width of Spool Power Source
A-Air Preumatic Moter Drive (A) 0-No Swivel 06" (150mm) with of spool 12-12 volt DC
C-Hand Crank driect drive (HC) 2-1/2" (12mm) I.D 12" (300mm) with of spool 24-24 volt DC
E-Electric moter driven, AC or DC (EM) 3-3/4"' (19mm) I.D 18" (450mm) with of spool 10-115 volt DC
H-Hydroulic moter driven (HM) 4-1/2" (12mm) Dual 22" (560mm) with of spool 4A-4AM (Air motor)
  5-13/4" (129mm) Dual 28" (700mm) with of spool 6A-6AM (Air motor)

Series 8000 spool spacer diameter
1-steel-6" (153 mm) dir		 Pressure type
L-1000 PSI (69 bar)
M-3000 PSI (207 bar)		 Electric Current Type
A-AC
D-DC

Reels can also be orered less swirel to be used as storage reels for cord, cable, hose, extension cord and numerous other applications.
Some of the above combinations of options are not available. Check with office for price and availability.

NOTE PLEASE
* To prevent drum damage all hose should be extended out from the drum before pressurizing.
* "D" dimension for hand crank direct drive reels is 29" (737mm) or 38" (966mm)
