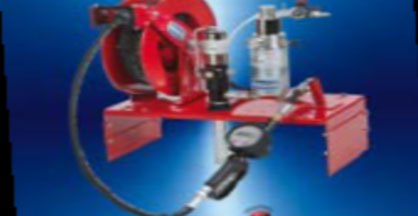

OIL HOSE REEL (Manufacture by S.P. Air Tools Pvt. Ltd. (INDIA)) |
|
 |
| |
SP manufactures of Lubrication Equipment and Fluid Monitoring Systems. An extensive range of Hose Reels with a complete set that guarantee of products.
* Oil Hose reels and hoses for oil
* Pneumatic oil pumps
* Oil control guns and accessories
* Electronic and mechanical oil flow meters
* Heavy Duty Mobile Oil Kit with Trolley
* Pneumatic Oil Distribution Unit.
The use of hose reels provides more security in the workshop and increases the life of hoses since those are no longer rest upon the floor after use where they could be damaged.
In order to satisfy all application requirements the hose reels are available in two main materials:
* Powder-coat painted carbon steel
* Stainless steel SS 304 & on demand also SS 316
The hose rewinding can be carried out:
* Automatically by the use of a spring,
* Manually by the use of a hand crank,
* By the use of a hydraulic motor,
* By the use of an electric motor.
The SP hose reel range consists of a big variety of versions that have been developed in order to meet the requirements of installation at the place of use. They can be classified according to their constructional characteristics, their form, their dimensions and materials into the following series. |
| |
|
| |
| |

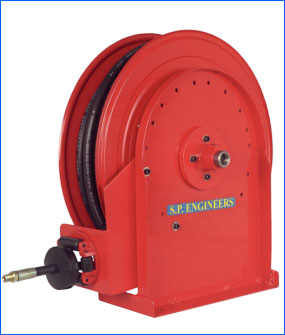

SINGLE STAND CARBON STEEL HOSE REEL – 7000 SERIES
AUTOMATIC REWIND, SPRING – DRIVEN |
| |
|
Automatic rewind, spring-driven hose reel, Single stand with powder coated, suitable for hoses of max 25 mtr lengths and max diameter of 1/2”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. From the inlet swivel joint the fluid flows through an interchangeable hose connection adapter assembly on which the hose is mounted (standard version galvanized steel, available on demand also in stainless steel 304 or 316).
Please see catalogue pages 123333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
Features:
* Single Stand Steel Frame Construction
* All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
* The Sturdy all welded frame base provides extra strength to handle the extra weight without loosing performance.
* High-Quality Spring for Long-life of coil spring, SS ratchet spring & non-corrosive ratchet.
* Full-Flow Shaft and Swivel Rotary to Maximize Fluid flow with minimum pressure drop for faster fills.
* Standard Swivel inlet: 90° with ½” bsp male thread size & outlet ½” bsp male.
* Swivel Rotary Seal – PU Seal.
* Multi-Position Lock Ratchet Secures Hose at desired length.
* Final Finishing / Painting: powder coated as standard red color. (Other colors are available when you requested).
* All material is carbon steel as standard. (Stainless hose reels materials are available when you requested).
* Standard working pressure 200 bar.
* 6 months manufactures warranty. |
| |
| Standard Colour Available : Red, Blue & Yellow. |
| |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
ID |
OD |
LENGTH |
|
|
|
OHR-7A-1410 |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-7A-1415 |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-7A-1420 |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-7A-1425 |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-7A-3810 |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-7A-3815 |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-7A-3820 |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-7A-3825 |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-7A-1210 |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-7A-1215 |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-7A-1220 |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-7A-1225 |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
| |
SINGLE STAND STAINLESS STEEL HOSE REEL – 7000 SERIES
AUTOMATIC REWIND, SPRING – DRIVEN |
| |
 |
Automatic rewind, spring-driven hose reel, Single stand in stainless steel 304, suitable for hoses of max 25 mtr lengths and max diameter of 1/2”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. From the inlet swivel joint the fluid flows through an interchangeable hose connection adapter assembly on which the hose is mounted (available on demand also in stainless steel 316).
SP Spring Rewind hose reels allow users to maintain a clean, hygienic working environment which is both beneficial for your product and for employee safety. Hose reels can be mounted on wall or ceiling and supplied with an optional pivoting bracket to let the reel follow the operator’s movements and to allow for more convenient storage.
Stainless Steel hose reels are ideal for food processing, wash down, chemical transfer and industrial solvent handling.
Please see catalogue pages 123333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
* Mobile service van.
Features:
* Double Stand Steel Frame Construction
* All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
* The Sturdy all welded frame base provides extra strength to handle the extra weight without loosing performance.
* Dual frame, guide plate and 4-way roller assembly.
* High-Quality Spring for Long-life of coil spring, SS ratchet spring & non-corrosive ratchet.
* Full-Flow Shaft and Swivel Rotary to Maximize Fluid flow with minimum pressure drop for faster fills.
* Standard Swivel inlet: 90° with ½” bsp male thread size & outlet ½” bsp male.
* Swivel Rotary Seal – PU Seal (MS)
* Multi-Position Lock Ratchet Secures Hose at desired length.
* All materials in Stainless steel
* Standard working pressure 10 bar.
* Temperature range: -35°C/+95°C hot water.
* 6 months manufactures warranty. |
| |
| Standard Colour Available : Red, Blue & Yellow. |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
ID |
OD |
LENGTH |
|
|
|
OHR-7A-1410 SS |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-7A-1415 SS |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-7A-1420 SS |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-7A-1425 SS |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-7A-3810 SS |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-7A-3815 SS |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-7A-3820 SS |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-7A-3825 SS |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-7A-1210 SS |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-7A-1215 SS |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-7A-1220 SS |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-7A-1225 SS |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
| |

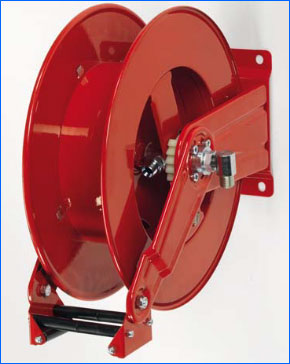

DUAL STAND CARBON STEEL HOSE REEL – 8000 SERIES
AUTOMATIC REWIND, SPRING – DRIVEN |
| |
 |
Automatic rewind, spring-driven hose reel, adjustable arms, dual stand with powder coated, suitable for hoses of max 25 mtr lengths and max diameter of 1/2”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. From the inlet swivel joint the fluid flows through an interchangeable hose connection adapter assembly on which the hose is mounted (standard version galvanized steel, available on demand also in stainless steel 304 or 316).
Please see catalogue pages 123333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
* Mobile service van.
Features:
* Double Stand Steel Frame Construction
* All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
* The Sturdy all welded frame base provides extra strength to handle the extra weight without loosing performance.
* Dual frame, guide plate and 4-way roller assembly.
* High-Quality Spring for Long-life of coil spring, SS ratchet spring & non-corrosive ratchet.
* Full-Flow Shaft and Swivel Rotary to Maximize Fluid flow with minimum pressure drop for faster fills.
* Standard Swivel inlet: 90° with ½” bsp male thread size & outlet ½” bsp male.
* Swivel Rotary Seal – PU Seal.
* Multi-Position Lock Ratchet Secures Hose at desired length.
* Final Finishing / Painting: powder coated as standard red color. (Other colors are available when you requested).
* All material is carbon steel as standard. (Stainless hose reels materials are available when you requested).
* Standard working pressure 600 bar.
* 6 months manufactures warranty. |
| Standard Colour Available : Red, Blue, Yellow |
| |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
ID |
OD |
LENGTH |
|
|
|
OHR-8A-1410 |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-8A-1415 |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-8A-1420 |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-8A-1425 |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-8A-3810 |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-8A-3815 |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-8A-3820 |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-8A-3825 |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-8A-1210 |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-8A-1215 |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-8A-1220 |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-8A-1225 |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
| |

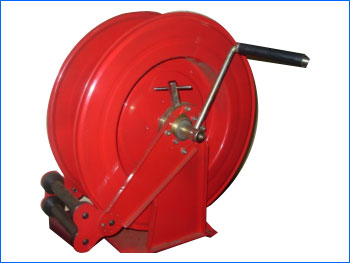

DUAL STAND CARBON STEEL HOSE REEL – 8000 SERIES
MANUAL HOSE REEL |
| |
 |
SP make manual hose reel, 8000 series, in painted steel, suitable for hoses of max 50 m length in ½”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, greese, compressed air and water at low and high pressure.
Please see catalogue pages 1233333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
Features:
* Double Stand Steel Frame Construction.
* Adjustable spool rotation drag eliminates hose backlash.
* Nickel-plated swivel
* Full flow shaft and ball bearing swivel
* Permanently lubricated dual main bearings
* All bolted construction – no welds
* Vibration-proof self-locking fasteners to ensure assembly integrity
* Final Finishing / Painting: powder coated as standard red colour (Other colours are available when you requested).
* All materials is carbon steel as standard (Stainless hose reels materials are available when you requested). |
| Standard Colour Available : Red, Blue, Yellow |
| |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
ID |
OD |
LENGTH |
OHR-8M-1410 |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-8M-1415 |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-8M-1420 |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-8M-1425 |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-8M-3810 |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-8M-3815 |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-8M-3820 |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-8M-3825 |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-8M-1210 |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-8M-1215 |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-8M-1220 |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-8M-1225 |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
| |
DUAL STAND STAINLESS STEEL HOSE REEL – 8000 SERIES
AUTOMATIC REWIND, SPRING – DRIVEN |
| |
|
Automatic rewind, spring-driven hose reel, adjustable arms, dual stand in stainless steel 304, suitable for hoses of max 25 mtr lengths and max diameter of 1/2”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. From the inlet swivel joint the fluid flows through an interchangeable hose connection adapter assembly on which the hose is mounted (available on demand also in stainless steel 316).
SP Spring Rewind hose reels allow users to maintain a clean, hygienic working environment which is both beneficial for your product and for employee safety. Hose reels can be mounted on wall or ceiling and supplied with an optional pivoting bracket to let the reel follow the operator’s movements and to allow for more convenient storage.
Stainless Steel hose reels are ideal for food processing, wash down, chemical transfer and industrial solvent handling.
Please see catalogue pages 123333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
* Mobile service van.
Features:
* Double Stand Steel Frame Construction
* All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
* The Sturdy all welded frame base provides extra strength to handle the extra weight without loosing performance.
* Dual frame, guide plate and 4-way roller assembly.
* High-Quality Spring for Long-life of coil spring, SS ratchet spring & non-corrosive ratchet.
* Full-Flow Shaft and Swivel Rotary to Maximize Fluid flow with minimum pressure drop for faster fills.
* Standard Swivel inlet: 90⁰ with ½” bsp male thread size & outlet ½” bsp male.
* Swivel Rotary Seal – PU Seal (MS)
* Multi-Position Lock Ratchet Secures Hose at desired length.
* All materials in Stainless steel
* Standard working pressure 10 bar.
* Temperature range: -35°C/+95°C hot water.
* 6 months manufactures warranty. |
| Standard Colour Available : Red, Blue, Yellow |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
ID |
OD |
LENGTH |
|
|
|
OHR-8A-1410-SS |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-8A-1415-SS |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-8A-1420-SS |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-8A-1425-SS |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-8A-3810-SS |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-8A-3815-SS |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-8A-3820-SS |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-8A-3825-SS |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-8A-1210-SS |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-8A-1215-SS |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-8A-1220-SS |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-8A-1225-SS |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
| |
DUAL STAND STAINLESS STEEL HOSE REEL – 8000 SERIES
MANUAL HOSE REEL |
| |
 |
SP make manual hose reel, 8000 series, in painted steel, suitable for hoses of max 50 m length in ½”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, greese, compressed air and water at low and high pressure.
Please see catalogue pages 1233333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
Features:
* Double Stand Steel Frame Construction.
* All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
* Adjustable spool rotation drag eliminates hose backlash.
* Nickel-plated swivel
* Full flow shaft and ball bearing swivel
* Permanently lubricated dual main bearings
* All bolted construction – no welds
* Vibration-proof self-locking fasteners to ensure assembly integrity
* All materials in Stainless steel
* 6 months manufactures warranty. |
| Standard Colour Available : Red, Blue, Yellow |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
ID |
OD |
LENGTH |
|
|
|
OHR-8M-1410 SS |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-8M-1415 SS |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-8M-1420 SS |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-8M-1425 SS |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-8M-3810 SS |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-8M-3815 SS |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-8M-3820 SS |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-8M-3825 SS |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-8M-1210 SS |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-8M-1215 SS |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-8M-1220 SS |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-8M-1225 SS |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
| |
ENCLOSED SERIES
CARBON STEEL HOSE REEL |
 |
SP Make Automatic rewind, spring-driven hose reel, enclosed series with powder coated, suitable for hoses of max 25 mtr lengths and max diameter of 1/2”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. (Standard version galvanized steel, available on demand also in stainless steel 304 or 316).
Please see catalogue pages 123333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
* Mobile service van.
Features:
* Double Stand Steel Frame Construction
* All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
* The Sturdy all welded frame base provides extra strength to handle the extra weight without loosing performance.
* Dual frame, guide plate and 4-way roller assembly.
* High-Quality Spring for Long-life of coil spring, SS ratchet spring & non-corrosive ratchet.
* Full-Flow Shaft and Swivel Rotary to Maximize Fluid flow with minimum pressure drop for faster fills.
* Standard Swivel inlet: 90⁰ with ½” bsp male thread size & outlet ½” bsp male.
*Swivel Rotary Seal – PU Seal.
* Multi-Position Lock Ratchet Secures Hose at desired length.
* Final Finishing / Painting: powder coated as standard red color. (Other colors are available when you requested).
* All material is carbon steel as standard. (Stainless hose reels materials are available when you requested).
* Standard working pressure 600 bar.
* 6 months manufactures warranty. |
| |
Standard Colour Available : Red, Blue, Yellow |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
ID |
OD |
LENGTH |
|
|
|
OHR-EN-1410 SS |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-EN-1415 SS |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-EN-1420 SS |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-EN-1425 SS |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-EN-3810 SS |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-EN-3815 SS |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-EN-3820 SS |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-EN-3825 SS |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-EN-1210 SS |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-EN-1215 SS |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-EN-1220 SS |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-EN-1225 SS |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
| |
ENCLOSED SERIES
STAINLESS STEEL HOSE REEL |
 |
SP Make Automatic rewind, spring-driven hose reel, enclosed series with Stainless Steel 304, suitable for hoses of max 25 mtr lengths and max diameter of 1/2”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. (Standard version galvanized steel, available on demand in stainless steel 316).
Please see catalogue pages 123333 for the selection of the required hoses.
Please click on hose link for the selection of the required hoses.
Application:
* Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
* Municipal Corporations, Garage Workshops for lubrication, washing.
* Oil Management systems for multi point.
* Mobile service van.
Features:
* Double Stand Steel Frame Construction
* All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
* The Sturdy all welded frame base provides extra strength to handle the extra weight without loosing performance.
*Dual frame, guide plate and 4-way roller assembly.
* High-Quality Spring for Long-life of coil spring, SS ratchet spring & non-corrosive ratchet.
* Full-Flow Shaft and Swivel Rotary to Maximize Fluid flow with minimum pressure drop for faster fills.
* Standard Swivel inlet: 90⁰ with ½” bsp male thread size & outlet ½” bsp male.
* Swivel Rotary Seal – PU Seal.
* Multi-Position Lock Ratchet Secures Hose at desired length.
* Final Finishing / Painting: powder coated as standard red color. (Other colors are available when you requested).
* All material is carbon steel as standard. (Stainless hose reels materials are available when you requested).
* Standard working pressure 600 bar.
* 6 months manufactures warranty. |
| Standard Colour Available : Red, Blue, Yellow |
| |
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
ID |
OD |
LENGTH |
|
|
|
OHR-EN-1410 |
1/4" |
|
10 MTR |
1/4" (M) - 1/4" (F) |
|
|
OHR-EN-1415 |
1/4" |
|
15 MTR |
1/4" (M) - 1/4" (F) |
12 KG |
240 X 550 X 450 |
OHR-EN-1420 |
1/4" |
|
20 MTR |
1/4" (M) - 1/4" (F) |
16 KG |
240 X 550 X 450 |
OHR-EN-1425 |
1/4" |
|
25 MTR |
1/4" (M) - 1/4" (F) |
19 KG |
310 X 550 X 450 |
OHR-EN-3810 |
3/8" |
|
10 MTR |
3/8" (M) - 3/8" (F) |
|
|
OHR-EN-3815 |
3/8" |
|
15 MTR |
3/8" (M) - 3/8" (F) |
12 KG |
240 X 550 X 450 |
OHR-EN-3820 |
3/8" |
|
20 MTR |
3/8" (M) - 3/8" (F) |
16 KG |
240 X 550 X 450 |
OHR-EN-3825 |
3/8" |
|
25 MTR |
3/8" (M) - 3/8" (F) |
19 KG |
310 X 550 X 450 |
OHR-EN-1210 |
1/2" |
|
10 MTR |
1/2" (M) - 1/2" (F) |
|
|
OHR-EN-1215 |
1/2" |
|
15 MTR |
1/2" (M) - 1/2" (F) |
12 KG |
240 X 550 X 450 |
OHR-EN-1220 |
1/2" |
|
20 MTR |
1/2" (M) - 1/2" (F) |
16 KG |
240 X 550 X 450 |
OHR-EN-1225 |
1/2" |
|
25 MTR |
1/2" (M) - 1/2" (F) |
19 KG |
310 X 550 X 450 |
|
|
|
|
|
| |
 |
|
1
2
3
