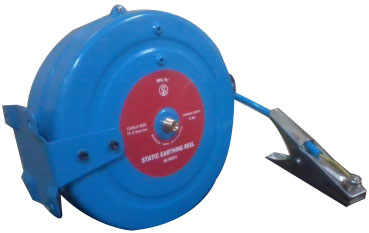

Static Discharge Grounding Reels (CLOSED MODEL)


Static Discharge Grounding Reels

SP Closed & Compact model reels are more suitable for storage of static grounding cable with quick payout and automatic spring rewind. Designed for safe and reliable grounding of vehicles, aircraft, and other equipment requiring static bonding. Reels are manufactured with sheet metal. These reels are standard supplied with 10, 15, 20, 25 or 30 Mtr. of Yellow/Red PVC coated galvanised/SS steel/Copper cables. Finished in a Blue colour powder coating for all models. It comes with latching lock of cable at 500mm length.

Model  No.

Cable

Max Resistance

Reel Dimensions in MM

Approx
Weight (kgs)



Mtr

O.D.



W

H

D



SP SDR-10 CS

10

4mm











SP SDR-15 CS

15

4mm











SP SDR-20 CS

20

4mm











SP SDR-25 CS

25

4mm











SP SDR-30 CS

30

4mm










FEATURES:-
* Fully automatic spring rewind
* Non-sparking latchet
* 4mm galvanised steel cable with pvc coated 7x7 standard cable
* 100 amp grounding clamp
* Electrical Resistance – Max 10 Ohms between damp and mounting base.
* Metal housing with MIL grade blue colour powder coated

Application:-
* Fuel tank loading-unloading static grounding
* Airplane fuel filling static grounding
* Utility vehicle static grounding
* Maintenance shops
* Any place where static might build up

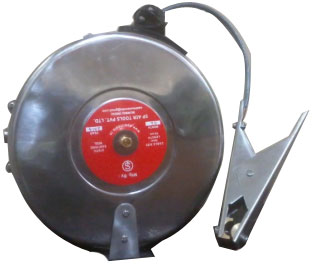

Static Discharge Grounding Reels (CLOSED MODEL) SS
Static Discharge Grounding Reels

SP SS Closed & Compact model reels are more suitable for storage of static grounding cable with quick payout and automatic spring rewind With 304 stainless steel housing, cable and spare fitting. SP grounding reel provides superior quality, durability and corrosion resistance. No powder coating require for finish. This reel is more suitable for clean environments such as food and pharmaceutical processing, marine, chemical and combustible dust applications. These reels are standard supplied with 05, 10, 15, 20 Mtr. of Yellow/Red PVC coated Stainless steel cables. It comes with latching lock of cable at 500mm length.


Model  No.

Cable

Max Resistance

Reel Dimensions in MM

Approx
Weight (kgs)



Mtr

O.D.



W

H

D



SP SDR-05 SS

05

4mm











SP SDR-10 SS

10

4mm











SP SDR-15 SS

15

4mm











SP SDR-20 SS

20

4mm










FEATURES:-
* Fully automatic spring rewind
* Non-sparking latchet
* 4mm stainless steel pvc coated 7x7 standard cable
* 50amp and 100 amp stainless steel grounding clamp
* Electrical Resistance – Max 10 Ohms between damp and mounting base.
* Stainless steel 304 housing for chemical industry and outdoor use.


Application:-
* Fuel tank loading-unloading static grounding
* Airplane fuel filling static grounding
* Utility vehicle static grounding
* Any place where static might build up

Static Discharge Grounding Reels (OPEN MODEL)

SP SDR reels are more suitable for storage of static grounding cable with quick payout and automatic spring rewind. Designed for safe and reliable grounding of vehicles, aircraft and other equipment requiring static bonding. These reels are manufactured with heavy duty gauge of metal. These reels are standard supplied with 10, 15, 20, 25 or 30 Mtr. of Yellow/Red PVC coated galvanised/SS steel cable. Finished in a Blue colour powder coating for all models. It comes with multi-position arm guide and latching of cable at 500mm length.


Model  No.

Cable

Max Resistance

Reel Dimensions in MM

Approx
Weight (kgs)

Mtr

O.D.

W

H

D

SP SDR-10

10

4mm











SP SDR-15

15

4mm











SP SDR-20

20

4mm











SP SDR-25

25

4mm











SP SDR-30

30

4mm












FEATURES:-
* Heavy duty steel construction
* Fully automatic spring rewind
* Non-sparking latchet
* 4mm galvanised steel cable with PVC coated 7x7 standard cables.
* 100 amp grounding clamp
* Multi-position arm guide
* Electrical Resistance – Max 10 Ohms between damp and mounting base.
* MIL grade blue colour powder coated

Application:-
* Fuel tank loading-unloading static grounding
* Airplane fuel filling static grounding
* Utility vehicle static grounding
* Maintenance shops
* Any place where static might build up
