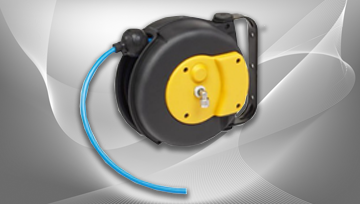

Air Hose Reel (Plastic Steel Body) Enclosed Type
SP - Mini Reel Series 9200
Technical Features :
- Mini-reel for applications in the industrial sector and for hobby.
- Môn extruded
- Polyurethane hose
- Techno polymer casing
- Provided with hose ratchet stop device, easily removable if constant traction is required.
- Working temperature: - 5℃ / + 40℃
|
MODEL NO |
HOSE ID MM |
HOSE MTR |
MAX PRESS BAR |
HOSE TYPE |
AIR |
WATER |
OIL |
KG |
|
SP9200/6 |
5.5 |
6.5 |
12 |
PU |
YES |
YES |
NO |
2 |

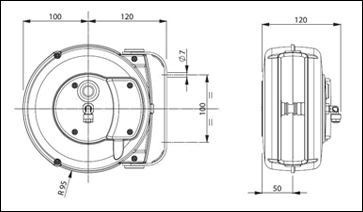

Dimensions :

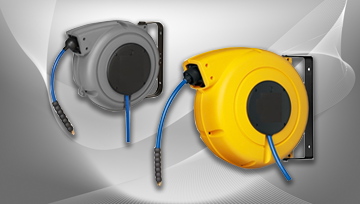

SP - Reel Series 904 - 905
Technical Features :
- Techno polymer casing
- Complete with pivot bracket
- Provided with hose ratchet stop device, easily removable if constant traction is required.
- PU Hose
|
MODEL NO |
HOSE ID MM |
HOSE MTR |
MAX PRESS BAR |
HOSE TYPE |
AIR |
WATER |
OIL |
KG |
|
SP904/8 |
8 |
10 |
15 |
PU |
YES |
YES |
NO |
4 |
|
SP904/10 |
10 |
8 |
15 |
PU |
YES |
YES |
NO |
4 |
|
SP905/SP9 |
8 |
16 |
15 |
PU |
YES |
YES |
NO |
7 |
|
SP905/10 |
10 |
16 |
15 |
PU |
YES |
YES |
NO |
7 |
|
SP905/13 |
12.5 |
11 |
15 |
PU |
YES |
YES |
NO |
7 |
|
SP904/SP9/S |
8 |
10 |
15 |
PU |
YES |
YES |
NO |
4 |
|
SP904/10/S |
10 |
8 |
15 |
PU |
YES |
YES |
NO |
4 |
|
SP905/SP9/S |
8 |
16 |
15 |
PU |
YES |
YES |
NO |
7 |
|
SP905/10/S |
10 |
16 |
15 |
PU |
YES |
YES |
NO |
7 |
|
SP905/13/S |
12.5 |
11 |
15 |
PU |
YES |
YES |
NO |
7 |

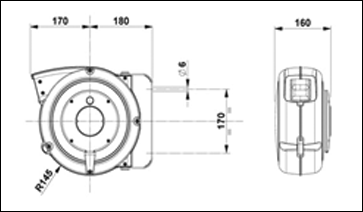

Dimensions 804 :

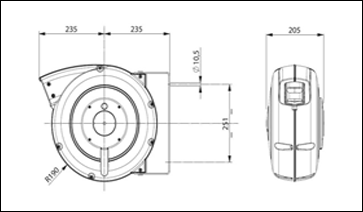

Dimensions 805 :

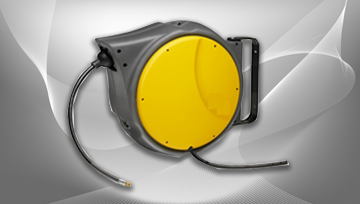

SP - Reel Series IND
Technical Features :
- Techno polymer casing
- Complete with pivot bracket
- Provided with hose ratchet stop device, easily removable if constant traction is required.
- Suitable for air transmission
|
MODEL NO |
HOSE ID MM |
HOSE MTR |
MAX PRESS BAR |
HOSE TYPE |
AIR |
WATER |
OIL |
KG |
|
SPIND-90/8 |
8 |
10 |
15 |
PU |
YES |
NO |
NO |
4.5 |
|
SPIND-95/8 |
8 |
16 |
15 |
PU |
YES |
NO |
NO |
8 |
|
SPIND-95/10 |
10 |
16 |
15 |
PU |
YES |
NO |
NO |
8 |

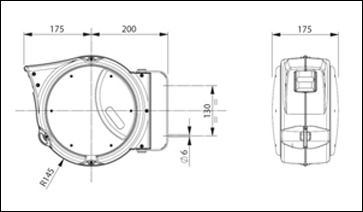

Dimensions IND 80 :

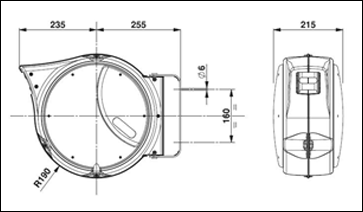

Dimensions IND 85 :

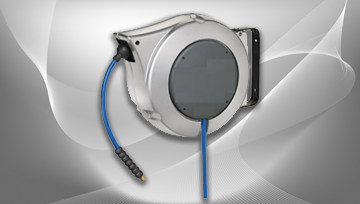

SP - Reel Series ALU
Technical Features :
- PU Hose
- Diecast aluminium casing,
- Complete with pivot bracket
- Provided with hose ratchet stop device, at desired length, easily removable if constant traction is required
|
MODEL NO |
HOSE ID MM |
HOSE MTR |
MAX PRESS BAR |
END PIPE FITTING |
HOSE TYPE |
AIR |
WATER |
OIL |
KG |
|
SPALU91/8 |
8 MM (5/16") |
10 |
15 BAR |
1/4" M |
PU |
YES |
YES |
NO |
6 |
|
SPALU91/10 |
10 MM(3/8) |
8 |
15 BAR |
3/8" M |
PU |
YES |
YES |
NO |
6 |
|
SPALU93/8 |
8 MM (5/16") |
16 |
15 BAR |
1/4" M |
PU |
YES |
YES |
NO |
9 |
|
SPALU93/10 |
10 MM (3/8") |
16 |
15 BAR |
3/8" M |
PU |
YES |
YES |
NO |
9 |
|
SPALU93/13 |
12.5 MM (1/2") |
11 |
15 BAR |
1/2" M |
PU |
YES |
YES |
NO |
9 |

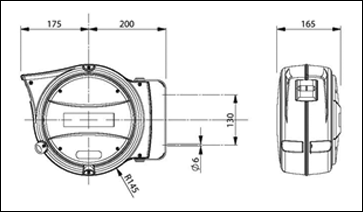

Dimensions ALU 81 :

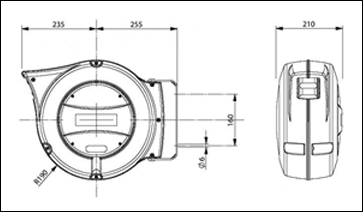

Dimensions ALU 83 :
SP - Reel Series IND97
Technical Features :
- PU Hose
- Techno polymer casing
- Complete with pivot bracket
- Provided with hose ratchet stop device, easily removable if constant traction is required.
|
MODEL NO |
HOSE ID MM |
HOSE MTR |
MAX PRESS BAR |
END PIPE FITTING |
HOSE TYPE |
AIR |
WATER |
KG |
|
SPIND96/10 |
10 MM (3/8") |
25 |
15 |
3/8"M |
PU |
YES |
YES |
10 |
|
SPIND96/13 |
12.5 (1/2") |
16 |
15 |
1/2"M |
PU |
YES |
YES |
10 |

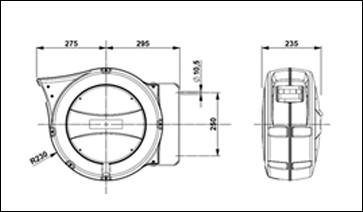

Dimensions :

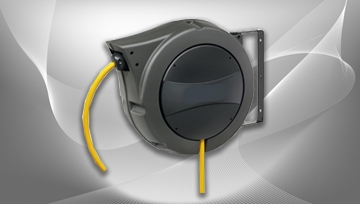

SP - Reel Series IND97 / AGRO
Technical Features :
- Soft PVC hose with polyester yarn reinforcement.
- Techno polymer casing
- Complete with pivot bracket
- Provided with hose ratchet stop device, easily removable if constant traction is required.
|
MODEL NO |
HOSE ID MM |
HOSE MTR |
MAX PRESS BAR |
END PIPE FITTING |
HOSE TYPE |
COLD WATER |
KG |
|
SPIND-96/AGRO |
12 MM (1/2") |
18 |
6 |
NO |
PVC |
SI |
14 |

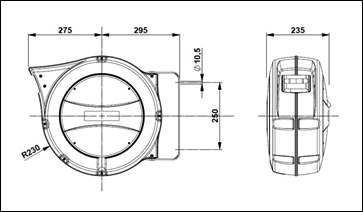

Dimensions :
