Diesel Filters

(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)

Model no. 7600
In order filter for diesel and petrol with 30 microns – cartridge for the inclusion of water that is finally present in the storage tank. The water could mainly become hazardous for the diesel motors of the latest production. The filter continuously soaks up the water which after some time will reason a drop of the delivery and also a loss of head of the diesel supply unit. Therefore the waterlogged cartridge must be replaced then. The filter can be installed on the suction side as well as on the delivery side of the diesel supply unit.



MODEL NO. MAX FLOW RATE WORKING PRESSURE BURST PRESSURE FILTRATION DEGREE CONNECTION THREADS DIMENSIONS (LXWXH) (MM)
7600 70 L/MIN 3.5 BAR 10 BAR 30 MICRONS 1'1/4" BSP (F) 100X280X95

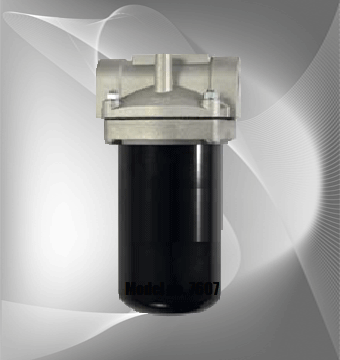

Model no. 7607
In order filter for diesel and petrol with 10 microns – cartridge for the inclusion of water that is finally present in the storage tank. The water could mainly become hazardous for the diesel motors of the latest production. The filter continuously soaks up the water which after some time will reason a drop of the delivery and also a loss of head of the diesel supply unit. Therefore the waterlogged cartridge must be replaced then. The filter can be installed on the suction side as well as on the delivery side of the diesel supply unit.



MODEL NO. MAX FLOW RATE WORKING PRESSURE BURST PRESSURE FILTRATION DEGREE CONNECTION THREADS DIMENSIONS (LXWXH) (MM)
7607 110 L/MIN 10 BAR 30 BAR 10 MICRONS 1" BSP (F) 114X285X135

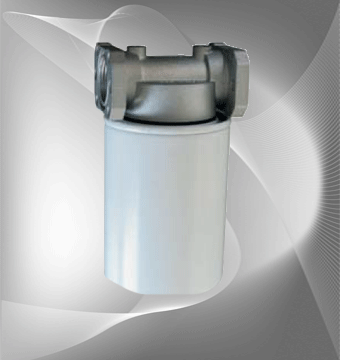

Model no. 7613
In order filter for diesel, oil and petrol with 10 microns – spin-on cartridge. The filter can be installed on the suction side as well as on the delivery side of the diesel supply unit.



MODEL NO. MAX FLOW RATE WORKING PRESSURE BURST PRESSURE FILTRATION DEGREE CONNECTION THREADS DIMENSIONS (LXWXH) (MM)
7613 60 L/MIN 10 BAR 30 BAR 10 MICRONS 1" BSP (F) 100X44X98

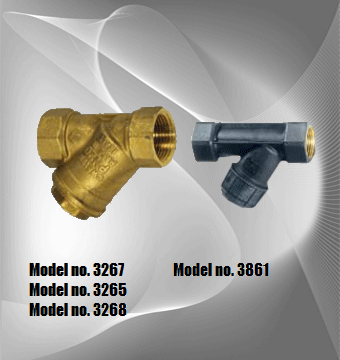

Model no. 3267 – 3265 – 3268
In order (Y – type) filters with strainer, body in brass and strainer in stainless steel.
Model no. 3861
In order (Y – type) filters with strainer, body in plastic and strainer in stainless steel.



MODEL NO. MAX FLOW RATE WORKING PRESSURE BURST PRESSURE FILTRATION DEGREE DIMENSIONS (LXWXH) (MM)
3267 10 BAR 30 BAR 400 MICRONS 1/2" BSP (F) 57X40X24
3265 10 BAR 30 BAR 400 MICRONS 3/4" BSP (F) 70X52X31
3268 10 BAR 30 BAR 400 MICRONS 1" BSP (F) 96X68X48
3861 10 BAR 20 BAR 300 MICRONS 1" BSP (F) 100X80X52

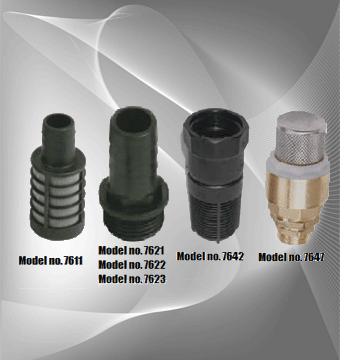

Model no. 7611 – Plastic suction filter with hose tail Ø 25 mm
Model no. 7621 – Plastic hose tail Ø 25 mm – ¾” BSP (M).
Model no. 7622 – Plastic hose tail Ø 25 mm – 1” BSP (M).
Model no. 7623 – Plastic hose tail Ø 20 mm – 3/4” BSP (M).
Model no. 7642 – Suction non-return foot valve, body in plastic, with filter, connection 1” BSP (F)
Model no. 7647 – Suction non-return foot valve, body in brass, with filter in stainless steel. Connection 1” BSP (M), dia 47.5 mm, total height 91.5 mm.
