Electric Diesel Pumps 12/24 VDC
(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)
Model no. 7252
Model no. 7254
Electric vane pump, 12 VDC and 24 VDC, selfpriming, for the transfer of diesel, with transport handle, ON / OFF switch and 2 m – cable with alligator clamps for battery connection.
| MODEL NO. | VOLTAGE | POWER | CURRENT DRAIN | RPM | DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS (LXWXH) (MM) |
| 7252 | 12 VDC | 216 W | 18 A | 2800 | 43 L/MIN | 1" BSP (F) | 4.5 KG | 140X150X200 |
| 7254 | 24 VDC | 240 W | 9 A | 2800 | 43 L/MIN | 1" BSP (F) | 4.5 KG | 140X150X200 |

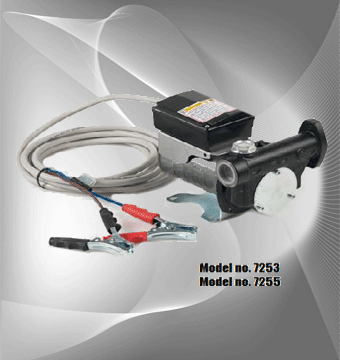

Model no. 7253 Model no. 7255
Electric vane pump, 12 VDC and 24 VDC, selfpriming, for the transfer of diesel, with transport handle, ON / OFF switch and 4 m – cable with alligator clamps for battery connection.
| MODEL NO. | VOLTAGE | POWER | CURRENT DRAIN | RPM | DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS (LXWXH) (MM) |
| 7252 | 12 VDC | 240 W | 30 A | 4200 | 60 L/MIN | 1" BSP (F) | 5.6 KG | 130X150X300 |
| 7254 | 24 VDC | 240 W | 15 A | 4200 | 60 L/MIN | 1" BSP (F) | 5.6 KG | 130X150X300 |

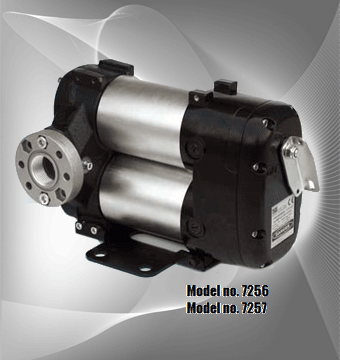

Model no. 7256 Model no. 7257
Electric vane pump, 12 VDC and 24 VDC, selfpriming, for the transfer of diesel, with transport handle, ON / OFF switch and 4 m – cable with alligator clamps for battery connection.
| MODEL NO. | VOLTAGE | POWER | CURRENT DRAIN | RPM | DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS (LXWXH) (MM) |
| 7256 | 12 VDC | 400 W | 40 A | 2000 | 85 L/MIN | 1" BSP (F) | 10.4 KG | 190X350X280 |
| 7257 | 24 VDC | 400 W | 25 A | 2000 | 85 L/MIN | 1" BSP (F) | 10.4 KG | 190X350X280 |

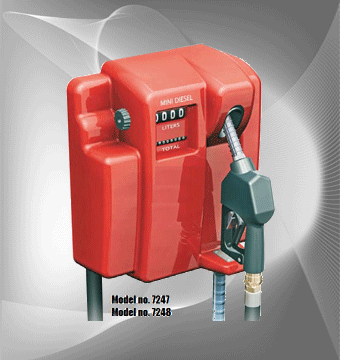

Model no. 7247 Model no. 7248
Mini Diesel 40E
Encased diesel supply unit with electric pump (12 VDC / 24 VDC), composed of:
• Electric diesel pump with a delivery of 43 l/min;
• 4 m – delivery hose
• 2 m – suction hose;
• Automation nozzle with inlet swivel
• Mechanical flow meter;
• Suction foot valve with filter.
| MODEL NO. | VOLTAGE | POWER | CURRENT DRAIN | RPM | DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS (LXWXH) (MM) |
| 7256 | 12 VDC | 400 W | 40 A | 2000 | 85 L/MIN | 1" BSP (F) | 10.4 KG | 190X350X280 |
| 7257 | 24 VDC | 400 W | 25 A | 2000 | 85 L/MIN | 1" BSP (F) | 10.4 KG | 190X350X280 |
Model no. 7453
Electric vane pump, self priming, 230 VAC, for the transfer of diesel. Motor in sintered steel and vanes in acetal resin. The pump has a built-in bypass valve; protection category IP 55 delivery 60 l/min.
| MODEL NO. | VOLTAGE | POWER | CURRENT DRAIN | RPM | DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS (LXWXH) (MM) |
| 7435 | 230 VDC | 370 W | 1.5 A | 2800 | 60 L/MIN | 1" BSP (F) | 7 KG | 170X190X230 |
