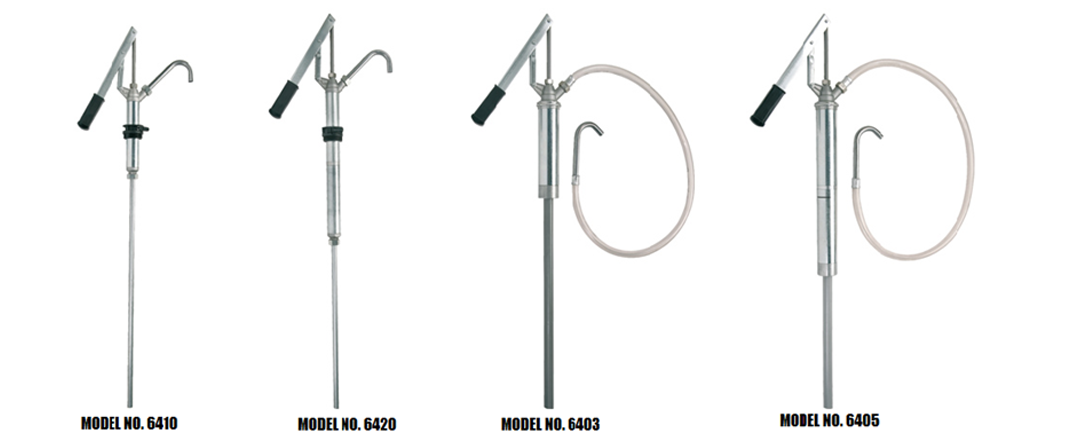

Manual Pumps For Oil And Antifreeze
(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)
Manual lever action drum pumps, available as single action or double action versions, made of carbon steel with components in aluminium and seals in Vitons.
Main fields of application: transfers and dispenses of small quantities of oil or antifreeze from drums.
|
MODEL NO. |
6403 |
6405 |
6410 |
6420 |
|
DELIVERY / MIN. |
12 L |
24 L |
8 L |
16 L |
|
DELIVERY / STROKE |
0.25 L |
0.48 L |
0.13 L |
0.23 L |
|
CONNECTION LUBRICANT OUTLET |
3/4" BSP (M) |
|||
|
LENGTH SUCTION TUBE |
1000 MM |
|||
|
DIMENSION LXWXH(MM) |
80X80X1350 |
|||
|
SUITABLE FOR DRUMS OF |
208 L |
|
|
|
|
WEIGHT |
2.3 KG |
2.3 KG |
2.2 KG |
2.2 KG |
The a.m. performance values are based upon the following test conditions: Hydraulic oil ISO 32 at 22 ̊C – free flow outlet

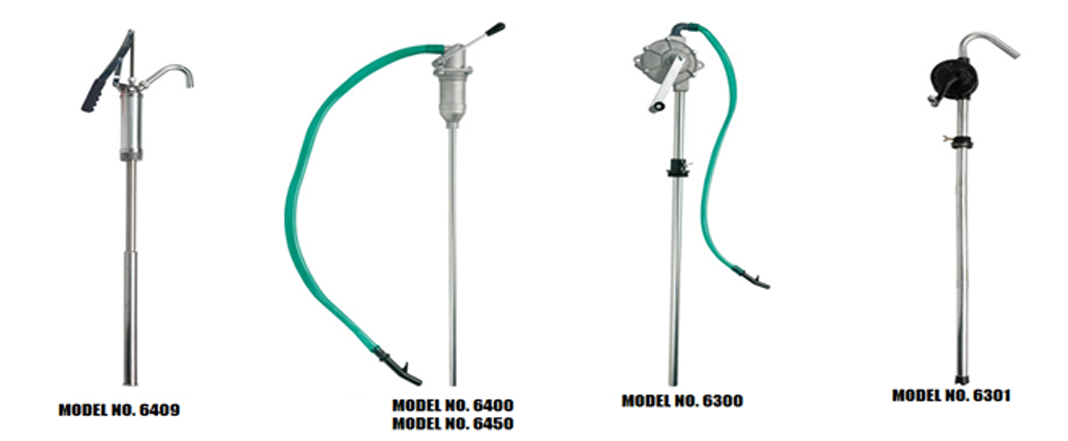

Manual Pumps For Oil And Diesel
Manual lever action and rotary drums pumps, made of carbon steel with components in aluminium.
Main fields of application: transfers and dispenses of small quantities of oil or diesel as well as gear oil from drums.
|
MODEL NO. |
6409 |
6400 |
6450 |
6300 |
6301 |
|
DELIVERY / MIN. |
12 L |
9 L |
13.5 L |
23 L |
20 L/MIN |
|
DELIVERY / STROKE (ROTATION) |
0.25 L |
0.11 L |
0.40 L |
0.32 L |
0.25 L |
|
CONNECTION LUBRICANT OUTLET |
3/4" BSP (M) |
HOSE TAIL Ø 20 MM |
|||
|
LENGTH SUCTION TUBE |
1000 MM |
||||
|
DIMENSION LXWXH(MM) |
100 X100X944 |
100 X100X944 |
120X120X1110 |
300X220X1070 |
300X220X1070 |
|
SUITABLE FOR DRUMS OF |
60/208 L |
208 L |
|||
|
WEIGHT |
1.8 KG |
1.3 KG |
2.2 KG |
3.8 KG |
4.2 KG |
The a.m. performance values are based upon the following test conditions: Hydraulic oil ISO 32 at 22 ̊C – free flow outlet
