Pneumatic Diesel Pumps And Diesel Transfer Kits
Moveable and wall-mounted pneumatic and electric pumps for transmit of diesel. The signify delivery figures refer on a free flow outlet.

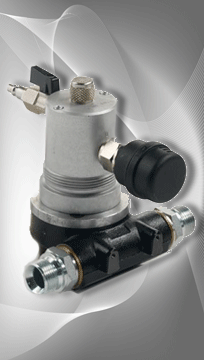

Model no. 7557
Pneumatic, rotary vane pump for the transfer of diesel, with filter and bypass valve, body in aluminium.
| MODEL NO. | COMPRESSED AIR SUPPLY | AIR CONSUMPTION | OUTLET PRESSURE | MAX DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS (LXWXH) (MM) |
| 7557 | 4 BAR | 160 L/MIN | 4 BAR | 35 L/MIN | 3/4" BSP (F) | 5 KG | 140X150 X190 |

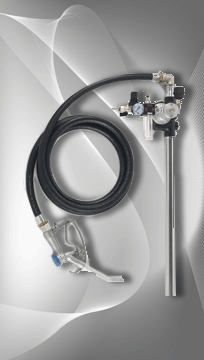

Model no. 7556
Pneumatic, rotary vane pump for the transfer of diesel, with filter and bypass valve, body in aluminium.
| MODEL NO. | COMPRESSED AIR SUPPLY | AIR CONSUMPTION | OUTLET PRESSURE | MAX DELIVERY | CONNECTION THREADS | WEIGHT |
| 7556 | 4 BAR | 160 L/MIN | 4 BAR | 35 L/MIN | 3/4" BSP (F) | 12 KG |

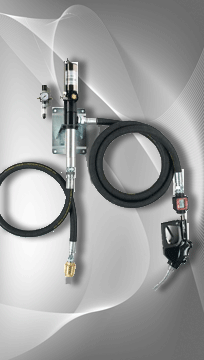

Model no. 7772
Diesel transfer kit, composed of pneumatic 1:1 – piston pump, standard series, with wall bracket, pressure regulator with manometer and air filter, 1.5 m rubber suction hose dia 1” BSP with foot valve and filter, electronic in-line turbine flow meter, 4m – rubber delivery hose dia ¾” and automatic nozzle with inlet swivel.
| MODEL NO. | COMPRESSED AIR SUPPLY | AIR CONSUMPTION | MAX OUTLET PRESSURE | MAX DELIVERY | CONNECTION THREADS | WEIGHT |
| 7572 | 2-8 BAR | 01:01 L/MIN | 8 BAR | 30 L/MIN | 3/4" BSP (F) | 13 KG |
